Why preparation determines the outcome
A maintenance shutdown in a continuously operating plant is a major undertaking. Production comes to a halt, contractors are ready to start, and every day of downtime has a direct impact on costs. However, many maintenance shutdowns are not won or lost in the field, but in the months leading up to them. By defining the scope of work on time, planning thoroughly, and safely preparing connections to existing installations, you maintain control over time, costs, and safety.
In sectors such as chemicals, energy, food processing, and pharmaceuticals, a single day of unplanned downtime can result in hundreds of thousands or even millions of euros in lost production. At the same time, comparative studies show that 40 to 70 percent of budget and schedule overruns can be attributed to late scope definition, insufficient preparation, and poor management of changes during the shutdown.
The conclusion is straightforward: a successful maintenance shutdown is not the result of heroic efforts during execution, but of systematic preparation in the months or years beforehand. For major maintenance shutdowns, a planning horizon of 12 to 24 months is often used, while smaller shutdowns involving individual parts of an installation may require 3 to 9 months of preparation. Starting too late is one of the most reliable predictors of delays.
Scope freeze: not bureaucracy, but risk management
A scope freeze is the point at which the list of activities is formally defined. After this point, new work can only be added through a clear change management procedure, including an assessment of the impact on planning, costs, safety, and the deployment of people and resources. This may sound strict, but it protects your shutdown from the classic mindset: “we’re already shut down, so we might as well do this too.”
The figures speak for themselves. Plants that freeze the scope of work around 180 days before the shutdown experience an average scope growth of approximately 6 percent. When the scope is not frozen until 60 days before the shutdown, this can increase to around 18 percent, along with the associated increase in costs. Every task added after the scope has been defined affects permits, resources, material availability, and the critical path. As a result, a robust plan can quickly become vulnerable.
Freeze in stages, not at a single moment
There is no universally correct date for freezing the scope. For shutdowns involving major investment projects, specialists recommend defining the technical scope and long-lead procurement 9 to 12 months in advance, and in some cases even 16 to 18 months beforehand. For shutdowns primarily focused on maintenance, a formal scope freeze 60 days in advance may be sufficient, provided planning and procurement are properly organised. Work in stages:
- Technical freeze for major connections and equipment
- Procurement freeze for components with long lead times
- Execution freeze for the complete scope of work
It is important that the scope is not determined by habit. Valves or other components that are routinely included on the list but have no demonstrable connection to safety, production, or reliability should be critically assessed. Risk-based decision-making using inspection data, failure history, and failure analyses helps make shutdowns shorter and more predictable.
Detailed planning as the backbone
A well-organised maintenance shutdown consists of clearly defined phases: strategic preparation, scope definition, detailed planning and procurement, preparation and execution, followed by commissioning and evaluation. Each phase should have clear deliverables and a designated owner. A responsible turnaround manager is often appointed early in the process as the central point of contact, with authority over scope, planning, and day-to-day coordination.
The critical path determines the total duration of the shutdown. Build contingency into the schedule primarily around activities that are not on the critical path, and develop recovery plans in advance for delays that could affect critical-path activities. Daily progress meetings, often held early in the morning, help maintain momentum. It is also important to remember that the longest lead time of a critical component partly determines the overall planning horizon: a pressure vessel with an eighteen-month lead time requires decisions to be made much earlier than most other activities.
Safe brownfield tie-ins within a limited shutdown window
Connections to existing pipelines, cables, and structures are among the highest-risk activities during a shutdown. In plants that have expanded and evolved over time, drawings are often outdated and hidden infrastructure may be present underground. Incorrect assumptions about existing conditions can lead to clashes, rework, and safety risks, precisely when there is no time to start over.

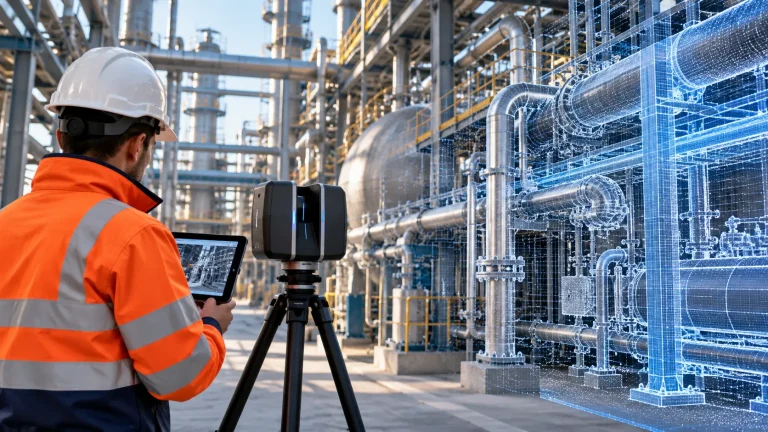

3D laser scanning as the foundation
This is where 3D laser scanning can make a significant difference. With an accurate model of the installation as it has actually been built, new piping sections, supports, and platforms can be digitally integrated and checked for clashes in advance. Studies show that the use of laser scanning can:
- reduce the total project costs of projects involving existing installations by 5 to 7 percent;
- reduce rework to less than 2 percent;
- shorten shutdowns by up to 10 percent.
Prefabricating components and installing them at exactly the right time can significantly reduce costly welding hours during the shutdown.
Safety goes beyond ensuring a proper fit
Safety involves more than simply ensuring that everything fits. Every connection requires a detailed isolation plan, a lockout/tagout procedure, verification that no energy or residual pressure remains, and a clear sequence for bringing the installation back into operation.
New loads must also be taken into account: adding a branch connection changes the forces within a piping system. Assessing stresses within the piping therefore helps prevent vibrations and leaks after restart. A trial run of the shutdown and an on-site inspection help ensure that everyone involved is aligned before execution begins.
Getting and maintaining control
From our perspective, the common thread is clear. A scope freeze is a deliberate choice for predictability, detailed planning creates room for controlled adjustments, and safe connections require close cooperation between engineering, production, and safety teams.
By addressing these three areas early, you can keep production running as efficiently as possible, minimise unexpected issues, and complete the shutdown within the agreed schedule and budget. Start early, base decisions on reliable data, and treat preparation as the real work.
